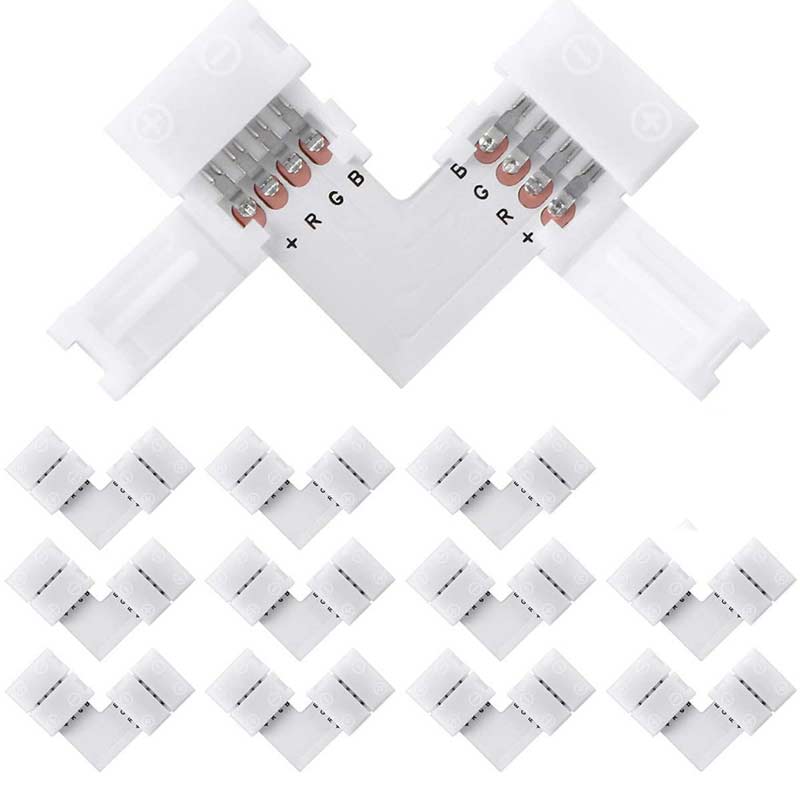

Solderless 4 Pin LED Strip Connector 90 Degree Corner L Shape LED Connector

(2 customer reviews)

$4.99$14.99

These led strip connector 4 pin fit for 5050 2835 3528 LED strip light. You can attach them with your light strips directly without any tools or welding operations. The wireless design ensures a gapless layout when you need to turn your LED strips around corners.

SKU: 3256802389617930 Category:

Solderless 4 Pin LED Strip Connector

The led strip connector 4 pin is perfect for connecting the LED power supply with Strips!

The 4 pin RGB connector is portable, durable, easy to carry, and lightweight. With this item, you don’t need to solder! Easy cheap, and fine!

Specification:

Weight:5g
Color: white
Width: 10mm
Size:15*14mm
Shape: L Shape
Pin quantity: 4 pins
Technology:injection molding



5 /5
Based on 2 ratings

Reviewed by 2 users

    • 4 months ago (Edit)

    Compatible with other lights

    These worked really well once I figured out how to open the clip and insert the light string. I found it easiest to open the clips with a small tip flat head screwdriver. Once open, there is a small groove that you have to slide the light strip into. This will make sure the copper connectors on the light strip slide under the silver prongs on the connector. After the light strip is inserted, close the cover until it ‘snaps’ closed. I used these to ‘wrap’ two light strings around an 80″ TV. The right-angle corner connectors were great for turning the corners at the edge of the TV.

    • 4 months ago (Edit)

    Good connectors for 90 degree turns

    I ended up purchasing a spool of adhesive lights from a local liquidation store and found out later that they did not come with dividers or sections, corner connectors, etc. so I started searching and found these. I was a little skeptical about if they would work when they finally arrived because I noticed that the BGR+ color coordinators were different than the ones printed on the light strips that I am using. I was very close to sending them back when I decided to give it a shot and to my surprise they worked just fine. They were definitely easy to install and reusable given there is no adhesive on the back.

Leave feedback about this

  • Rating
Choose Image

Please login to post questions

Question:

What are the 4 pins on a LED strip?

obitol
08-Aug-2022

Answer:

The 4 pin connectors are identical in size and shape to the 2-pin but include 4 pins that match up with the connection points on RGB (color changing) strip lights.

Question:

Can I use 4 pin LED with 3 pin?

obitol
08-Aug-2022

Answer:

No you can't. 4pin is straight analog 12v RGB and 3 pin is digital, 5v.

Question:

What's the difference between 3-pin and 4-pin RGB?

obitol
08-Aug-2022

Answer:

3-pin RGB lines are for addressable RGB, allowing for control over individual LEDs. 4-pin RGB lines do not have individual LED control. Electrically speaking, on 3-pin RGB strips, each LED acts like a shift register or similar, where data on what color it is is passed down each LED.

Question:

What connector has 4 pins?

obitol
08-Aug-2022

Answer:

a 4-pin connector used for older IDE (PATA or Parallel ATA) drives and some newer SATA drives, providing +5 v or +12 v to the drive.

Question:

How do you use a 4 pin connector LED strip?

obitol
08-Aug-2022

Answer:

Connecting LED light strips with these connectors is very simple: 1: Open clip on each side. 2: Slid the 10mm LED light strip inside the clip underneath the two contact prongs. 3: Make sure the side of the strip aligns with the "+ -" polarity. 4: Close the wire clip.

Question:

How many LED strips can you connect together?

obitol
08-Aug-2022

Answer:

This is no different with LED strips. Vetco recommends, as a general rule, not to connect more than three complete strips end-to-end without adding in extra, higher gauge power wire or additional power supply units down the line.
