Sale!

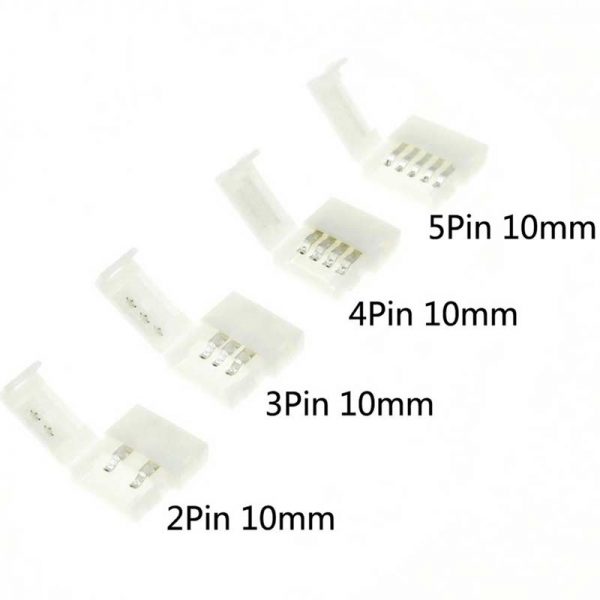

5 Pin RGBW LED Strip Connector 10mm 5PCS

(1 customer review)

$5.99$12.99

The 5 pin rgbw led strip connectors of this wire are for strips which PCB board width is 10mm
LED strip connector 5 pin suitable for RGB / RGBW / RGBWW color 5050 LED strips

SKU: 2251832840595047 Category:

5PCS Free Soldering led strip light connectors 5 pin L / T / X Shape Corner Connector For 10mm RGB RGBW RGBWW Led Strip Lights

5 /5
Based on 1 rating

Reviewed by 1 user

    • 4 months ago (Edit)

    Works perfectly

    I hate trying to solder LEDs because one of the connections would eventually come loose, so I looked into these. Just connect the strip to the connector, making sure the white goes to the ground and the red goes to 5v because it’s easy to put the strip in with the power and ground connections reversed. After the strip is inserted correctly, put a drop of hot glue on the connection and close the tab over it. You can try to pull the LED strip and connector apart after getting glued and they stayed put. I will probably never attempt to solder LED strips after learning this technique. Try it out if you’re having the same issues as me, which you most likely are if you are purchasing this connector.

Leave feedback about this

  • Rating
Choose Image

Please login to post questions

Question:

Can you connect 3 LED light strips together?

obitol
09-Aug-2022

Answer:

This is no different with LED strips. Vetco recommends, as a general rule, not to connect more than three complete strips end-to-end without adding in extra, higher gauge power wire or additional power supply units down the line

Question:

Can I connect two LED strips together?

obitol
09-Aug-2022

Answer:

The easiest way to connect two LED strips together is to use a LED light strip connecting clip. Two LED strips can be joined with each other using a male to male clip.

Question:

Can you connect a cut LED strip?

obitol
09-Aug-2022

Answer:

If the LED light strip you purchased can be cut, the remaining part that you have cut off cannot be used anymore. If you want to reconnect them after cutting, you must use an additional 4 pin connector to reconnect.

Question:

Can I connect multiple LED strips to one driver?

obitol
09-Aug-2022

Answer:

You can connect different types of LED light strips together, as long as they have the same voltage. If you connect two strips with a different voltage, then the lights won't work and could be damaged. You need to make sure that when you plug them in, all of the positive connectors are aligned.

Question:

Do all LED strip lights use the same connectors?

obitol
09-Aug-2022

Answer:

There are two different connection types for the EZ Click tight connectors for LED strip lights. The 2-pin LED strip connectors are used for single color strips. They only require a two-port connection as they simply need one positive and one negative connection.

Question:

How do you wire multiple LED strips together?

obitol
09-Aug-2022

Answer:

You simply have to install one end of your strip to the hippo buckle connector to connect two strips together. The 'buckle' on the connector keeps the strips in place once installed. You can use these connectors to connect two strips together or even connect your LED strip to the power supply.

Question:

What are the pins on an LED strip?

obitol
09-Aug-2022

Answer:

The tunable white light strip has three copper pads, one positive and two negatives. Therefore, the tunable white LED strip connector has a three-pin connection points, which we call 3 pin LED strip connector, including a positive connection and two negative connections for warm white and cool white light.
